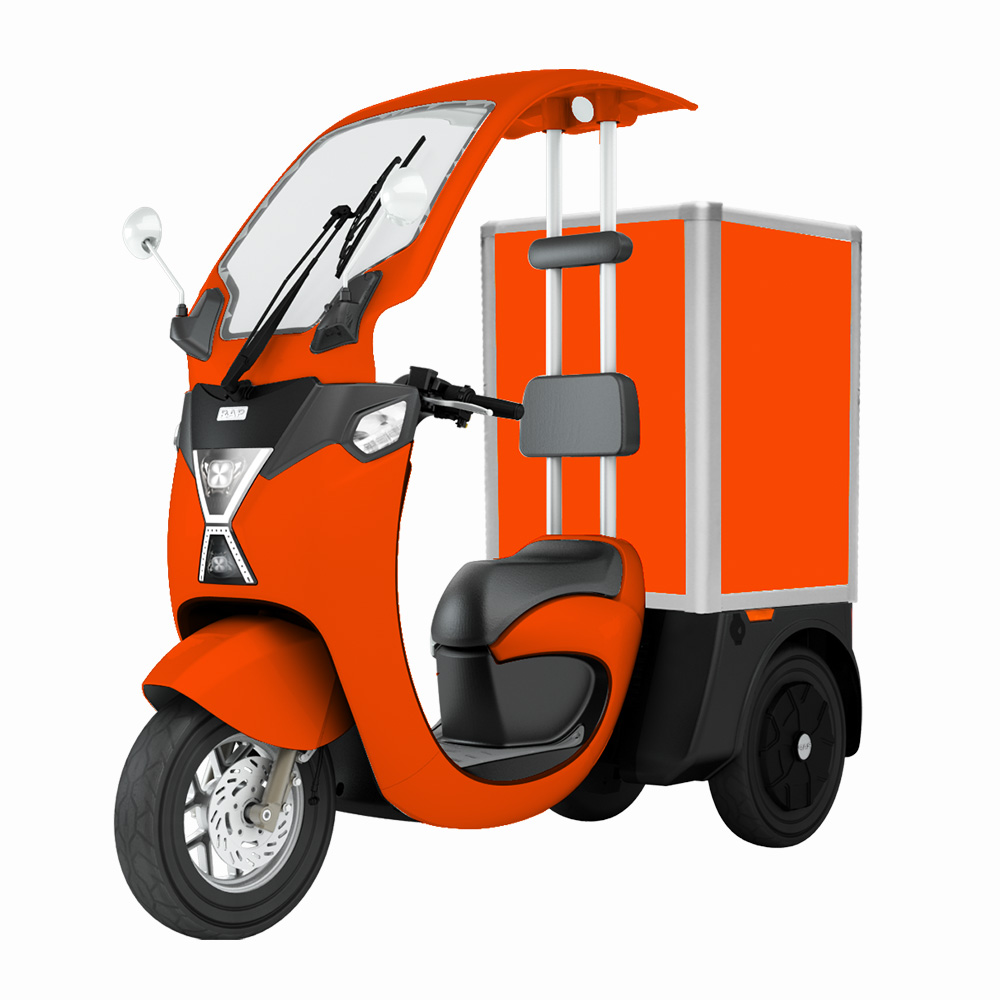

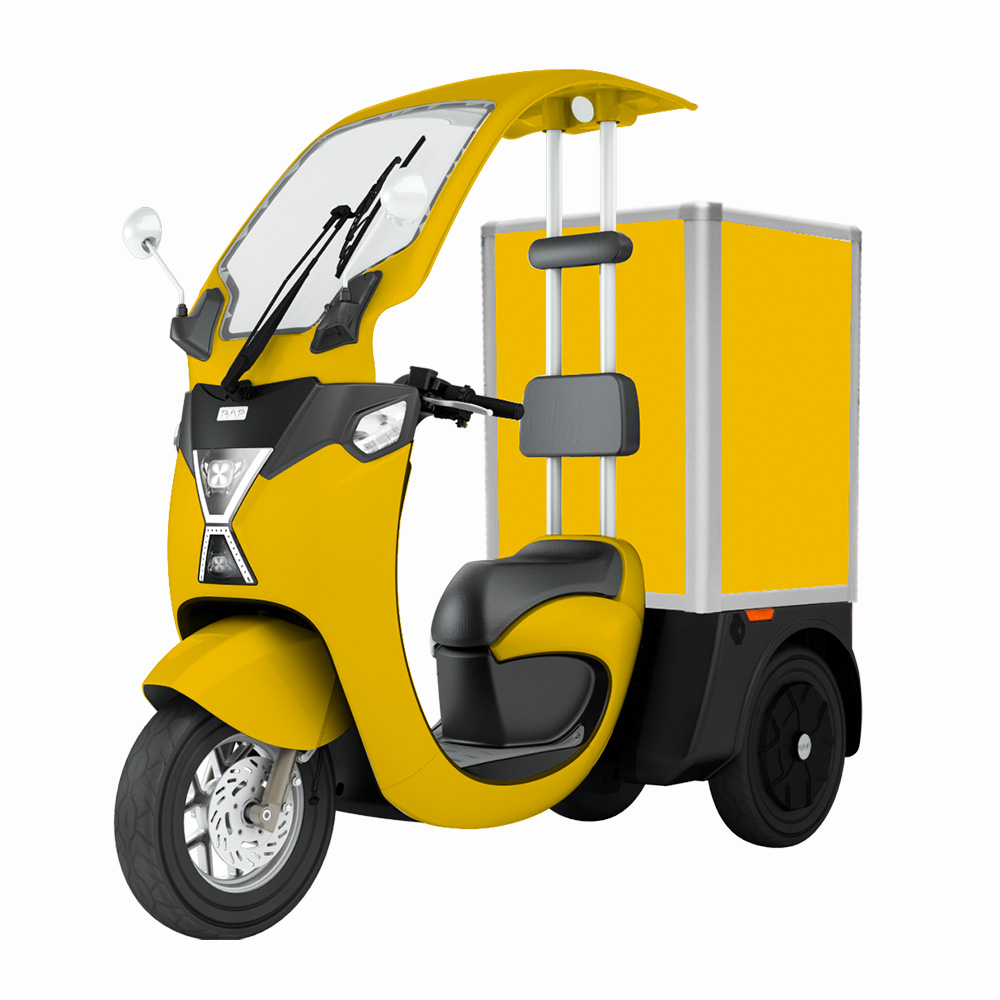

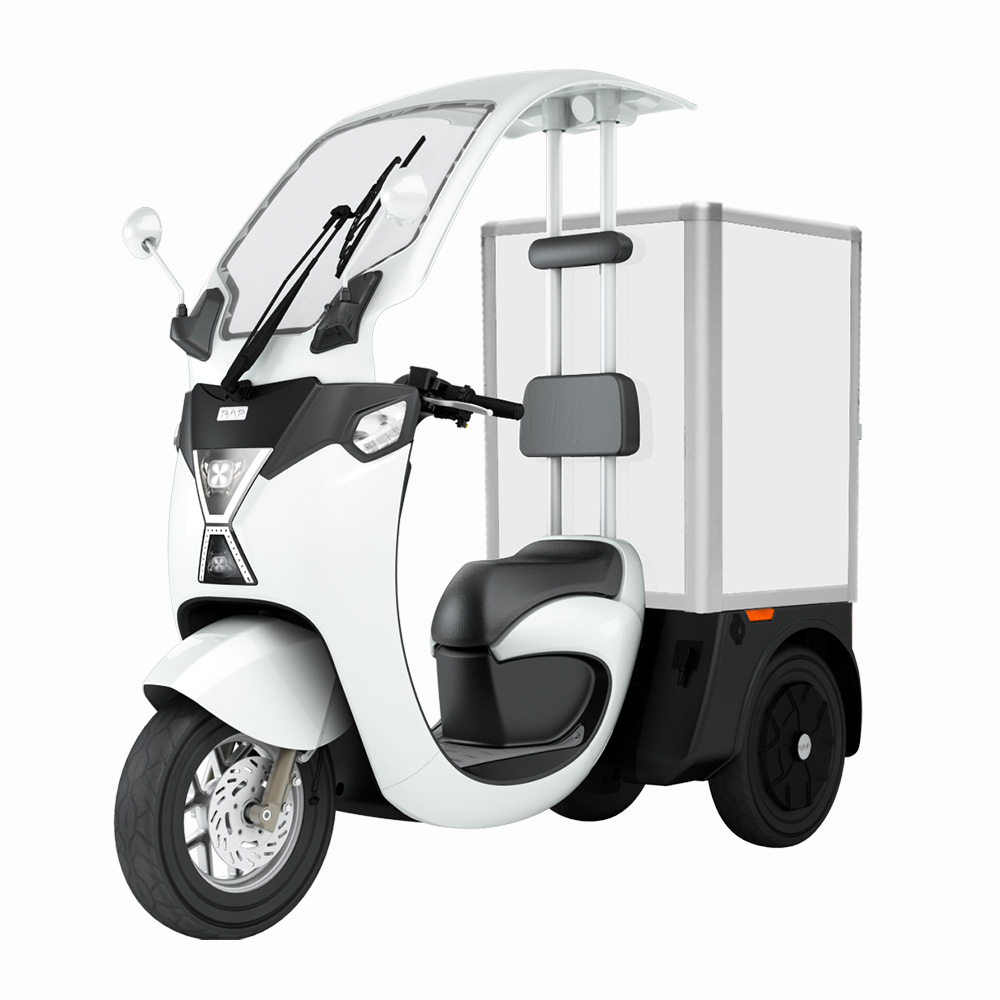

CT Kube

A small footprint urban transport suitable for time-critical deliveries or space-tight environments.

Configure the cargo bay of the CT-KUBE as your needs require to build a quick and dependable urban utility transport solution for your specific requirements.

Additional Features

Dimensions

2100mm (L) x 750mm (W) x 1850mm (H)

Wheelbase

1545mm

Read Tread

625mm

Minimum Ground Clearance

150mm

Curb Weight

205kg

Max Load

50kg

Cargo Capacity

Honey Comb Panel (1) 500L
Honey Comb Panel (2) 450L
EPP 255L

Full Load Weight

380kg

Max Rocking Angle

18° L&R

Tyre Type

110/90-12

Max Speed

50km/h

Max Climbing Angle

20°

Max Range

120km

Battery Type

LiFePO4 Lithium

Battery Nominal Voltage

51.2V

Battery Nominal Capacity

95Ah / 4.864kWh

Charging Time

6 – 8hrs

Motor

Permanent magnet synchronous

Rated Motor Power

4kW

Rated Torque

78Nm

Minimum Turning Radius

2.5m

Road Permit

RVCS Approval 50282 LB (3W moped) Classification
Car License (excl. NSW & VIC)

Colour

White
